Home  »  Products  »  Portable Jammer

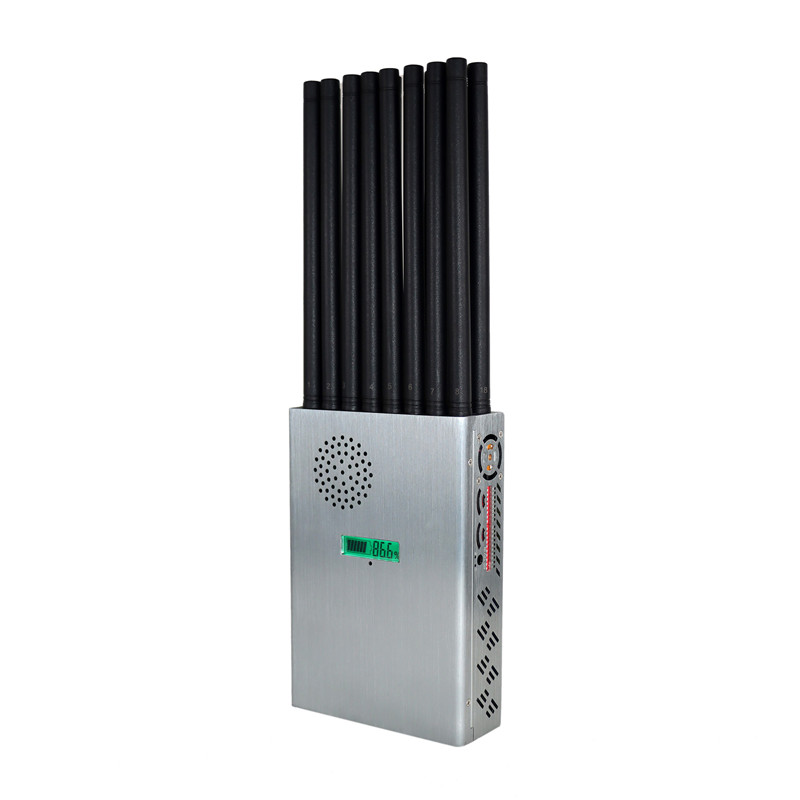

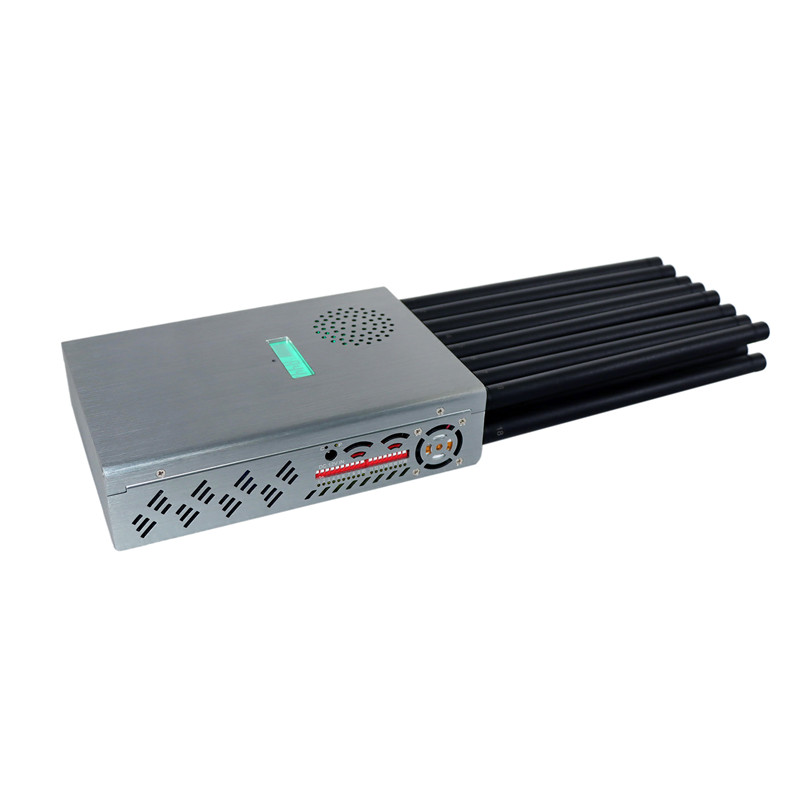

Product name: High Power Portable 18 Antennas 5G Mobile Phone Signal Jammer
Details:

Product Information

Name: The Latest Handheld 18 Bands 5G Cellphone Signal Jammer With Nylon Cover, Blocking 2G 3G 4G 5G Wi-Fi GPS UHF VHF,18Watt Jamming up to 25m
Model: CJP18

Color: Silver


Basic Specifications

Jam Signal Type

CJP18-EU: Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5 UHF/VHF/LOJACK+RC433 315

CJP18-US: Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5+VHF/LOJACK+RC433 315

Output Power:Total 18W,1W each band with 2dbi gains omni antennas

Jam Radius:2-25meters Still depends on the strength signal in given area

Power Supply:AC110-240V to DC12V

Cooling System:High efficiency aluminum alloy radiator, Build-in 3x cooling fan

Working Time:Built-in battery:7.4V/12000mAh Continue working: Around 2.5 hours

Product Size:190x126x46 mm(without omni Antenna)

Product Weight: appr.2.0kg

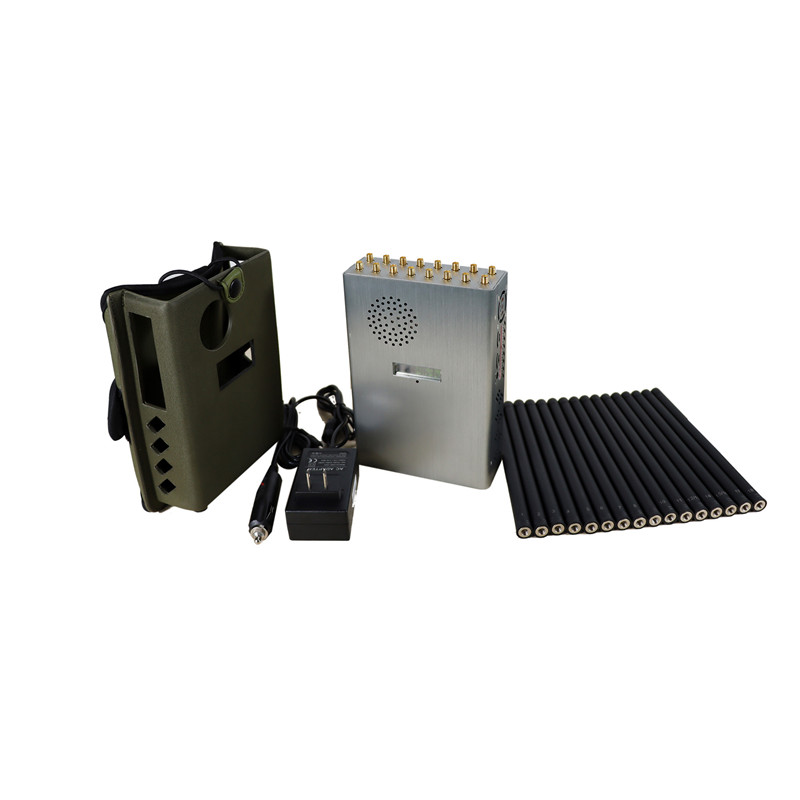

Package Contents:Jammer Host x 1, AC Charger x1, omni antenna x16, Car Charger x1, Nylon cover x1.



Product description:

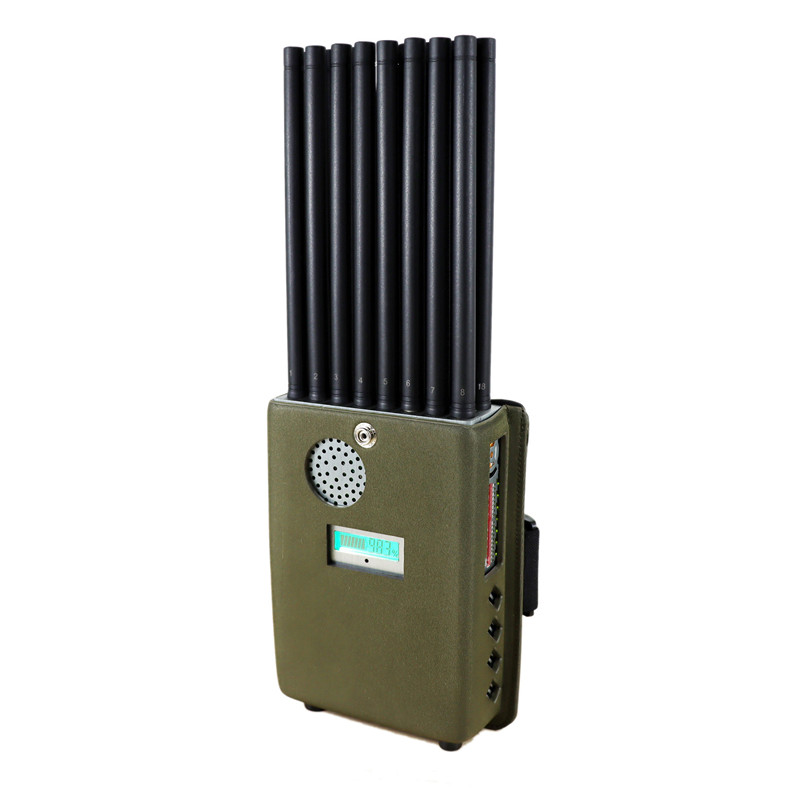

The latest 18 bands with 16 antennas all-in-one design wireless signal Jammer with nylon cover for portable, jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G 5G, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi 5G, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 etc. Not too bigger and with LCD display is popular in 2021 and in years to come.



Advantages:

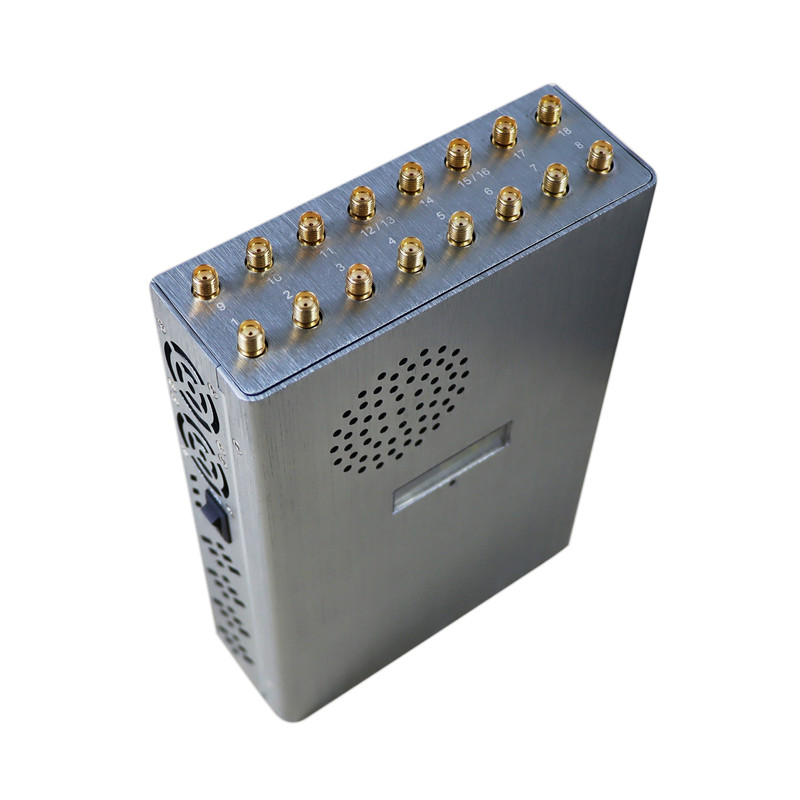

The world first 18 bands portable jammer with 16 antennas design (Channel 12/13,15/16 used dual bands design, eliminate the mutual interference of the too many and close channels), blocking all cell phone 5G 4G 3G 2G LOJACK GPS Wi-Fi RF signals

18 watts high output power, Jamming range 2 to 25 meters (at-75dBm, depends on signal strength in given area)

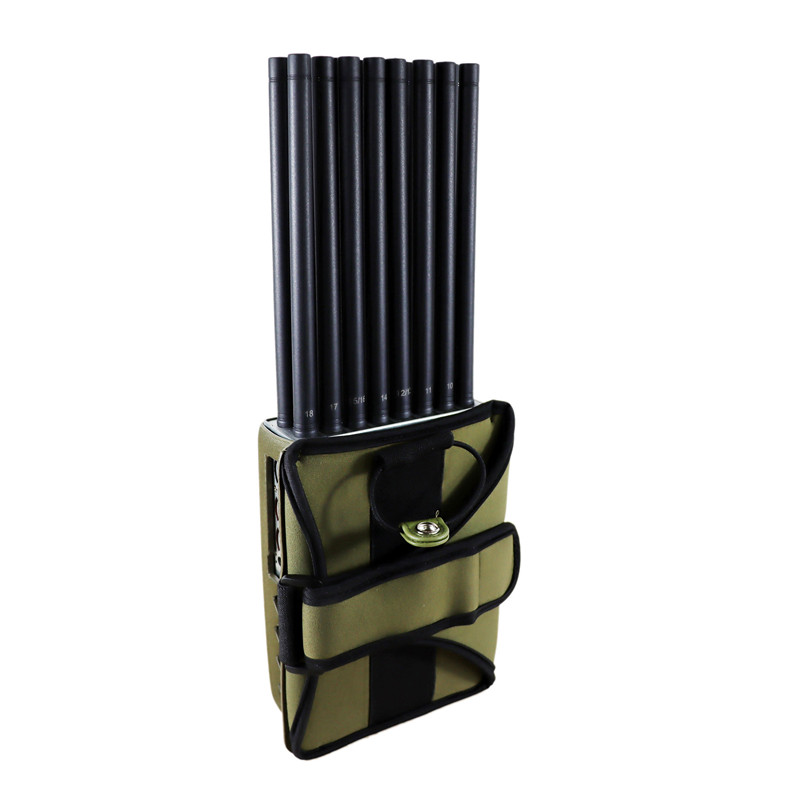

Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld

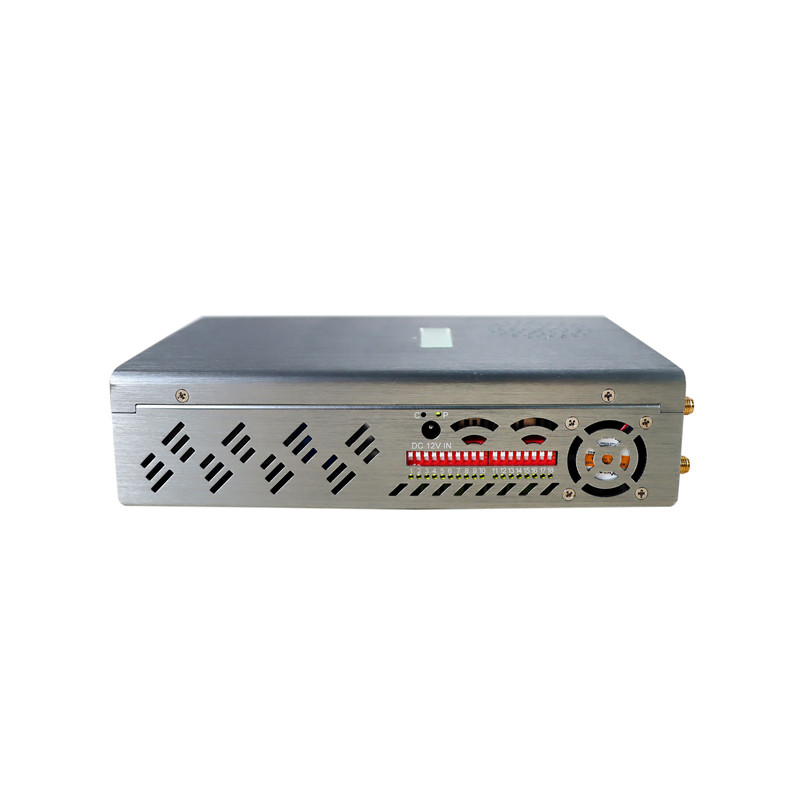

With DIP switch, can turn on/off any signal band without affect other bands

With car charger, 12V DC/AC power supply is also available

With built-in bigger battery, can work 150 minutes, repeated charging

Battery capacity LCD display (Capacity percentage, working Voltage/Current




OEM customized service:
Customized for special frequency band
Silkscreen OEM service can be offered


Application:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument



Key technical specifications: CJP18-EU

Channel

Output port

Frequency range

Average out-putting power

CH 1

UHF&CDMA450

400-470MHz

30±1dBm/ 1±0.2W

CH 2

4G800

758-826MHz

30±1dBm/ 1±0.2W

CH 3

5G3500

3400-3600MHz

30±1dBm/ 1±0.2W

CH 4

4G2300

2300-2400MHZ

30±1dBm/ 1±0.2W

CH 5

WIFI5.2G

5100-5500MHz

30±1dBm/ 1±0.2W

CH 6

GPSL2L5

1170-1280MHz

30±1dBm/ 1±0.2W

CH 7

5G1400

1427-1518MHz

30±1dBm/ 1±0.2W

CH 8

4G2600

2570-2690MHZ

30±1dBm/ 1±0.2W

CH 9

VHF/LOJACK

135-175MHz

30±1dBm/ 1±0.2W

CH 10

GPSL1

1570-1610MHz

30±1dBm/ 1±0.2W

CH 11

RC315

315MHz

30±1dBm/ 1±0.2W

CH12 /

CH13

DCS1800

1805-1880MHz

30±1dBm/ 1±0.2W

GSM900

925-960MHz

30±1dBm/ 1±0.2W

CH 14

RC433

433MHz

30±1dBm/ 1±0.2W

CH 15/

CH 16

WIFI2.4G

2400-2500MHz

30±1dBm/ 1±0.2W

WIFI5.8G

5500-5900MHz

30±1dBm/ 1±0.2W

CH 17

5G3700

3600-3900MHz

30±1dBm/ 1±0.2W

CH 18

3G2100

2110-2170MHz

30±1dBm/ 1±0.2W

Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)  Car Charger: DC12V IN

Dimensions: (length ,width, height) 190x126x46mm (without antenna)

Length of antenna :195mm   Gain:2.0dbi

Packing size: 330*250*80mm        Net weight: 1.6kg        Gross weight: 2.5kg

Total power: 18W
Shielding radius: (2-25) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: around 2.5 hours

Warranty: one year from delivery date





Key technical specifications: CJP18-US

Channel

Output port

Frequency range

Average out-putting power

CH 1

UHF/ 5G600

400-470 or 617-685MHz

30±1dBm/ 1±0.2W

CH 2

4G700

700-803MHz

30±1dBm/ 1±0.2W

CH 3

5G3500

3400-3600MHz

30±1dBm/ 1±0.2W

CH 4

4G2300

2300-2400MHZ

30±1dBm/ 1±0.2W

CH 5

WIFI5.2G

5100-5500MHz

30±1dBm/ 1±0.2W

CH 6

GPSL2L5

1170-1280MHz

30±1dBm/ 1±0.2W

CH 7

4G1700/GPSL3L4/ LORA

1710-1780 or 1370-1390 or 900-930MHz

30±1dBm/ 1±0.2W

CH 8

4G2600

2496-2690MHZ

30±1dBm/ 1±0.2W

CH 9

VHF/LOJACK

135-175MHz

30±1dBm/ 1±0.2W

CH 10

GPSL1

1570-1610MHz

30±1dBm/ 1±0.2W

CH 11

RC315

315MHz

30±1dBm/ 1±0.2W

CH12 /

CH 13

PCS1900

1920-2000MHz

30±1dBm/ 1±0.2W

CDMA850

850-894MHz

30±1dBm/ 1±0.2W

CH 14

RC433

433MHz

30±1dBm/ 1±0.2W

CH 15/

CH 16

WIFI2.4G

2400-2500MHz

30±1dBm/ 1±0.2W

WIFI5.8G

5500-5900MHz

30±1dBm/ 1±0.2W

CH 17

5G3700

3600-3900MHz

30±1dBm/ 1±0.2W

CH 18

3G2100

2110-2180MHz

30±1dBm/ 1±0.2W

Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)  Car Charger: DC12V IN

Dimensions: (length ,width, height) 190x126x46mm (without antenna)

Length of antenna :195mm   Gain:2.0dbi

Packing size: 330*250*80mm        Net weight: 1.6kg        Gross weight: 2.5kg

Total power: 18W
Shielding radius: (2-25) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: around 2.5 hours

Warranty: one year from delivery date
